Heating efficiency class B
Sanitary efficiency class A
XL sanitary load profile
CE identification number CE PIN 0476CQ0908
Heating
Flow rate to the hearth Qmin/max - 80/60°C kW 13.0/24.0
Rated power Pmin/max - 80/60°C kW 12.5/23.04
Rated power Pmin/max - 50/30°C kW -
Pmax efficiency - 80/60°C - 50/30°C % 96.0 / -
Efficiency P30% - 40/30°C % 99.7
Shell losses - Burn. On - 80/60°C Pmax/Pmin % 0.1/2.3
Chimney leaks - Burn. On - 80/60°C Pmax/Pmin % 2.2/1.9
Chimney leaks - Burn. Off - heating/DHW % 0.3/0.7
Delivery temp. min/max °C 30/85
Boiler operating pressure min/max bar 0.3/3
Heating expansion vessel - Capacity/precharge l/bar 7/0.75
Healthcare
Type of domestic hot water production Instant
ACS quality classification (EN 13203-1) 2 stars
Flow rate to the hearth min/max - 60°C kW 13.0/24.0
Rated power min/max - 60°C kW 12.3/23.2
Continuous flow rate (∆T= 25K) l/m 13.8
Specific flow rate (∆T = 30K) (EN13203) l/m 11.4
Peak flow rate in 10 minutes (∆T = 30K) l/10 min 114
DHW temperature min/max °C 35/65
Thermal dispersion of domestic hot water storage kWh/24h -
Min/max supply pressure bar -/8
General
Gas category II2H
Supply pressure mbar 20
Heating gas flow rate Pmin/Pmax m3/h 2.66
Gas flow rate in sanitary Pmax m3/h 2.66
Voltage/frequency/Intensity V/Hz/A 230/50/0.66
Consumption - Peak/Pmax/Pmin/Stand-by W - / - / 60 / -
Heating fume temp. (50-30°C) Pmin °C 51
Sanitary fume temp. (T DHW=50°C) Pmax °C 68
Combusted gases reheated Pmin/Pmax g/s -
CO2 Pmax % 7
Weighted NOx (0% O2) mg/kWh 56.0
Residual head at the fan Pa -
IPX 4D electrical protection
Weight 38 kg
Dimensions
70 cm high, 40 wide and 29.5 deep (24 kW)
HERMANN

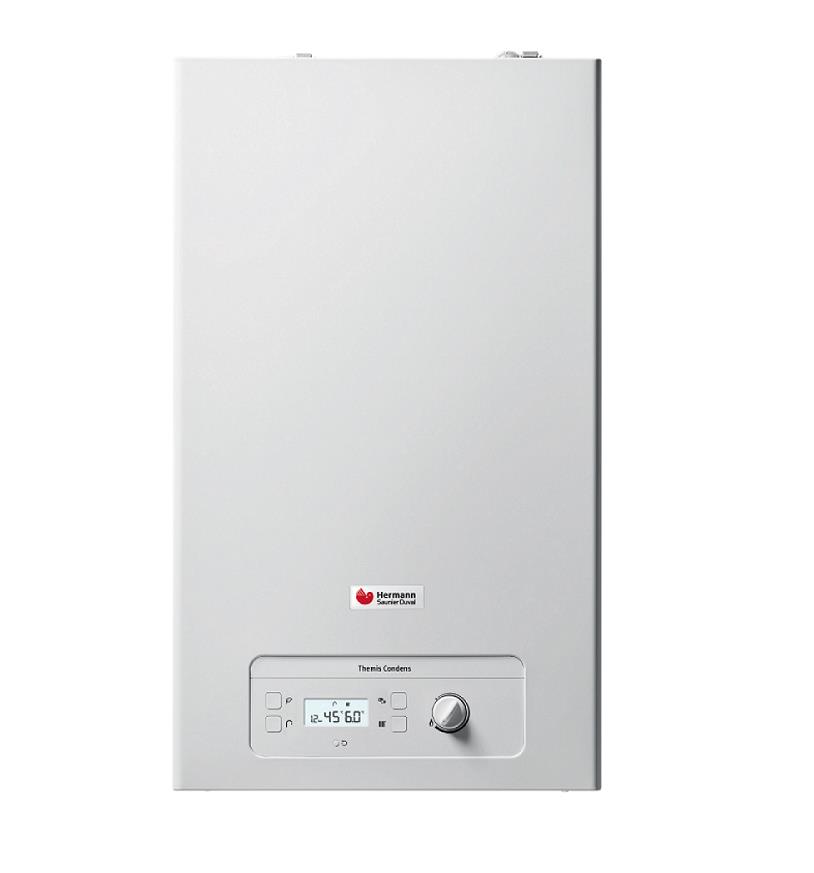

HERMANN SAUNIER DUVAL THEMIS CONDENS 24 KW LOW NOX METHANE CONDENSING BOILER COMPLETE WITH SMOKE EXHAUST KIT
SKU
10028067
- Regular price
- €1.210,00
- Sale price
- €990,00
Heating efficiency class B
Sanitary efficiency class A
XL sanitary load profile
CE identification number CE PIN 0476CQ0908
Heating
Flow rate to the hearth Qmin/max - 80/60°C kW 13.0/24.0
Rated power Pmin/max - 80/60°C kW 12.5/23.04
Rated power Pmin/max - 50/30°C kW -
Pmax efficiency - 80/60°C - 50/30°C % 96.0 / -
Efficiency P30% - 40/30°C % 99.7
Shell losses - Burn. On - 80/60°C Pmax/Pmin % 0.1/2.3
Chimney leaks - Burn. On - 80/60°C Pmax/Pmin % 2.2/1.9
Chimney leaks - Burn. Off - heating/DHW % 0.3/0.7
Delivery temp. min/max °C 30/85
Boiler operating pressure min/max bar 0.3/3
Heating expansion vessel - Capacity/precharge l/bar 7/0.75
Healthcare
Type of domestic hot water production Instant
ACS quality classification (EN 13203-1) 2 stars
Flow rate to the hearth min/max - 60°C kW 13.0/24.0
Rated power min/max - 60°C kW 12.3/23.2
Continuous flow rate (∆T= 25K) l/m 13.8
Specific flow rate (∆T = 30K) (EN13203) l/m 11.4
Peak flow rate in 10 minutes (∆T = 30K) l/10 min 114
DHW temperature min/max °C 35/65
Thermal dispersion of domestic hot water storage kWh/24h -
Min/max supply pressure bar -/8
General
Gas category II2H
Supply pressure mbar 20
Heating gas flow rate Pmin/Pmax m3/h 2.66
Gas flow rate in sanitary Pmax m3/h 2.66
Voltage/frequency/Intensity V/Hz/A 230/50/0.66
Consumption - Peak/Pmax/Pmin/Stand-by W - / - / 60 / -
Heating fume temp. (50-30°C) Pmin °C 51
Sanitary fume temp. (T DHW=50°C) Pmax °C 68
Combusted gases reheated Pmin/Pmax g/s -
CO2 Pmax % 7
Weighted NOx (0% O2) mg/kWh 56.0
Residual head at the fan Pa -
IPX 4D electrical protection
Weight 38 kg
Dimensions
70 cm high, 40 wide and 29.5 deep (24 kW)
- Regular price
- €1.210,00
- Sale price
- €990,00
